Skrutky triedy 8.8
stupeň 8.8 SKRUTKY
stupeň 8.8 SKRUTKY

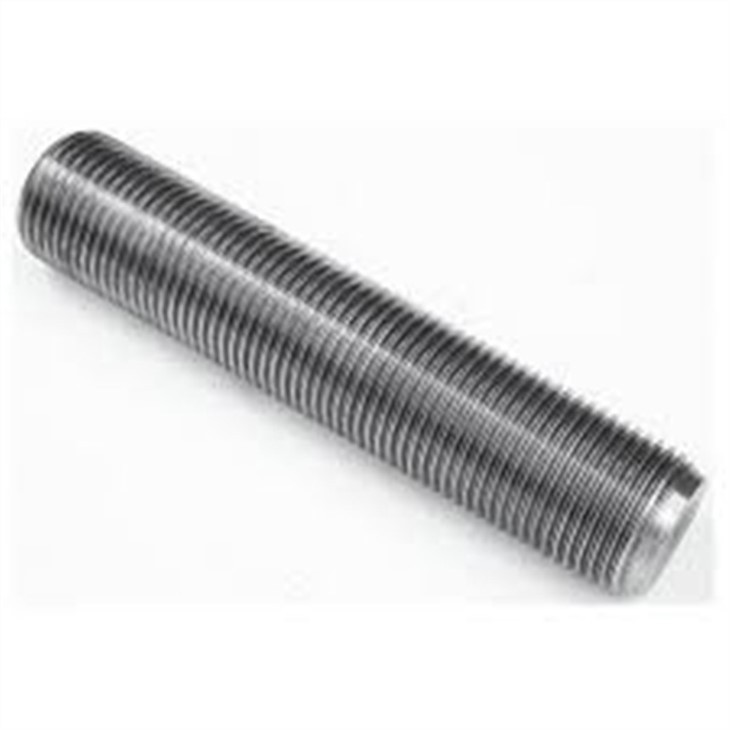

一.grade 8.8 STUD SKRUTKY
ASTM F568 Stupeň 8.8 Skrutky, Vysoká pevnosť v nápore 8,8 metrické skrutky, stupeň 8.8 Šesťhranné skrutky Dodávateľ, Vysoká pevnosť v nápore 8,8 Skrutky s polovičným závitom, Trieda 8.8 Výrobca skrutiek s plným závitom, Gr 8.8 Vysoké ťahové upevňovacie prvky, Skrutka s vysokým ťahom 8.8
二：Stôl s rozmermi šesťhrannej skrutky s vysokou pevnosťou v náhone 8,8
| Priem | M4 (M4) | M5 (M5) | M6 | M8 (M8) | M10 (M10) | M12 | M14 (M14) | M16 (M16) | M18 (M18) | M20 (M20) | M22 | M24 (M24) | M27 | M30 (M30) | M33 | M36 (M36) | M39 (M39) | M42 (M42) | M45 (M45) | M48 (M48) | M52 (M52) | |
| Trieda A až do dĺžky | 40 | 50 | 60 | 80 | 100 | 120 | 140 | 150 | Trieda A sa nevzťahuje na tieto | |||||||||||||
| Hlava cez ploché (S) Max Min(Trieda A) Min (trieda B) | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | |
| 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | ||
| Ihrisko | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | Trieda A sa nevzťahuje na tieto | ||||||||||
| Hrúbka hlavy (K) Tol + alebo – trieda A Trieda B | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 | |
| 0.125 | 0.15 | 0.18 | 0.215 | Trieda A sa nevzťahuje na tieto | ||||||||||||||||||
| 0.2 | 0.24 | 0.29 | 0.35 | 0.42 | 0.5 | |||||||||||||||||
| Cez rohy e Min Stupeň A Min. trieda B | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | Trieda A sa nevzťahuje na tieto | |||||||||
| 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | ||
| Hlavné Dia v závite (min) | 3.838 | 4.826 | 5.794 | 7.76 | 9.732 | 11.701 | 13.682 | 15.682 | 17.623 | 19.623 | 21.623 | 23.577 | 26.577 | 29.522 | 32.522 | 35.465 | 38.465 | 41.437 | 44.437 | 47.399 | 51.399 | |
| Hlavné Dia na závite (max) | 3.978 | 4.976 | 5.974 | 7.972 | 9.968 | 11.966 | 13.962 | 15.962 | 17.958 | 19.95 | ||||||||||||
Vysoká pevnosť v náhone 8,8 šesťhranných orechov – rozmerové štandardy
| Priem | M4 (M4) | M5 (M5) | M6 | M8 (M8) | M10 (M10) | M12 | M14 (M14) | M16 (M16) | M18 (M18) | M20 (M20) | M22 | M24 (M24) | M27 | M30 (M30) | M33 | M36 (M36) | M39 (M39) | M42 (M42) | M45 (M45) | M48 (M48) | M52 (M52) | |
| Ihrisko | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | ||
| Cez ploché (S) Max Min | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | |
| Hrúbka (M) Max Min | 3.2 | 4.7 | 5.2 | 6.8 | 8.4 | 10.8 | 12.8 | 14.8 | 15.8 | 18 | 19.4 | 21.5 | 23.8 | 25.6 | 28.7 | 31 | 33.4 | 34 | 36 | 38 | 42 | |
| 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 15.1 | 16.9 | 18.1 | 20.2 | 22.5 | 24.3 | 27.4 | 29.4 | 31.8 | 32.4 | 34.4 | 36.4 | 40.4 | ||
| Cez rohy (E) Min | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.35 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | |
| Vedľajšie Dia v závite (min) | 3.242 | 4.134 | 4.917 | 6.647 | 8.376 | 10.106 | 11.835 | 13.835 | 15.294 | 17.294 | 19.294 | 20.752 | 23.752 | 26.211 | 29.211 | 31.67 | 34.67 | 37.129 | 40.129 | 42.587 | 46.587 | |
| Minor Dia v závite (max) | 3.422 | 4.334 | 5.153 | 6.912 | 8.676 | 10.441 | 12.210 | 14.210 | 15.744 | 17 |
